EASYPITCH PRO

EASYPITCH PRO
FOR BUSINESS

DOWNLOAD THE PRODUCT SHEET READ THE TESTIMONIALS

55''

65''

75''

86''

98''

4K ULTRA HIGH DEFINITION IMAGE

EASYPITCH PRO is an interactive display that features 4K ultra-high definition for a rich immersive colour experience.

Designed for professional use, the Easypitch Pro interactive flat panel facilitates collaborative work, information sharing, project management and stimulates reflection and commitment from employees. Available in 5 different sizes, Easypitch pro adapts to all environments and sectors of activity.

Easypitch is designed for all your meetings, interactive presentations, brainstorming, stand-up meetings, voting, reporting, project follow-up, task planning, showroom,... An essential tool to bring on digital transition and complement the new 4.0 industry practices, the digital workplace, Agile@scale or lean enterprise !

Collaborate, interact and become creative with Easypitch PRO

4K ULTRA HIGH DEFINITION IMAGE

EASYPITCH PRO is an interactive display that features 4K ultra-high definition for a rich immersive colour experience.

WIRELESS PRESENTATION

INTERACTIVE SOFTWARE

X 32 MULTITOUCH

PC OPS OPTION

ANDROID 8.0

EASYPITCH WARRANTY

year on site

de-installation / re-installation
(Metropolitan France)

MAXIMUM VIEWING COMFORT

No one will ever be in a blind spot while viewing the screen (maximum viewing angle of 179°). The extra-large touch zone (214 cm diagonal) offers exceptional comfort and workspace.

ANTI SHOCK

Easypitch flat panels are equipped with a 4 mm tempered glass pane allowing them to be used intensively in high-traffic areas (shopping malls, schools, factory workshops, etc.). The work surface is designed to withstand repeated shocks without risk of damage.

OPTIMUM BRIGHTNESS

A technical anti-reflection layer has been integrated between the glass surface and the screen, effectively eliminating glare effects and reducing visual fatigue. The brightness is suitable for daily and sustained use.

LONG LIFE CYCLE

The average lifetime of Easypitch flat panels is 33 years or 55,000 hours. The warranty is 3 years on site.

4 mm anti-reflective
4 mm anti-reflective reinforced

Premium design frame
black brushed metal

Full 4K UHD resolution
on 55'', 65'', 75'' & 86'' models

USB 3.0 Webcam port

Ports under the centre edge of
the display facilitating the
fast presentation of
documents
HDMI 2.0 IN x 1
USB 3.0 x 2
USB type C
TOUCH Out

4k Ultra High Definition

Durability

MultiTouch x32
Gesture Control

Plug & Play

Anti-reflective glass

No shadows

Light weight

Low energy
consumption

Built-in 2x15w
speakers

3 years on site
warranty

Integrated PC
(optional)

Android 8.0
Wifi Module

Integrated wireless
presentation system

RK3399 Android Module

• 3 Go RAM
• 16 Go RAM
• Google play inclued

Integrated Android 8.0 interface

• 3 Go RAM
• 16 Go RAM

PC OPS option

• Intel Core i5 / 8Go RAM / SSD 128Go
• Intel Core i7 / 8Go RAM / SSD 256Go
• Windows 10 pro

4k Ultra High Definition

Durability

MultiTouch x32
Gesture Control

Plug & Play

Anti-reflective glass

No shadows

Light weight

Low energy
consumption

Built-in 2x15w
speakers

3 years on site
warranty

Integrated PC
(optional)

Android 8.0
Wifi Module

Integrated wireless
presentation system

THE EASYPITCH ACCESSORIES

DISCOVER THE ACCESSORIES

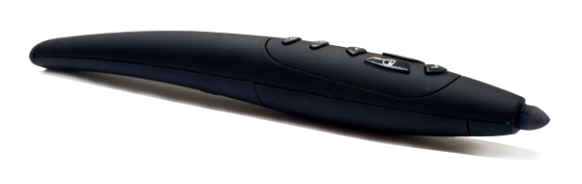

THE EASYPITCH SMART STYLUS PEN

Supplied with the Easypitch Pro interactive displays, the Smart Stylus Pen makes it easy to switch from touch to mouse mode. A real advantage, since the stylus allows you to control your presentations remotely as if you were using a remote control.

The Easypitch Smart Stylus Pen: more fluid, dynamic and comfortable to write with

Enhance the experience of Easypitch pro interactive flat panel during your meetings !

Present, collaborate and interact wirelessly, share documents.

What is DisplayNote MONTAGE?

To close

Montage is a wireless presentation system that allows everyone to be the presenter.
Up to 4 participants in a meeting can share the content of their screen
with the main screen and other participants in a face-to-face or remote meeting.

Designed for touch sensitive operation,
this all-in-one solution allows the presenter at the front of the room to reorganize the view of the content,,
take-over connected computers, annotate, and share documents.

Participants can easily connect
via a web browser, AirPlay, Miracast or an office application.
Remote participants can use the audio and the native video.

Share your content wirelessly with all participants
in a meeting. No cables or adapters required.

Control: With Montage you can control any
connected computer.

Animate your content:
Intuitive annotation tools provided.

Connect and collaborate: wherever you are. Share the screen
of each participant in your meeting in person or remotely.

Multi-screens
Displays 4 to 6 participants screens simultaneously.

Need more connections, video and sound?
Upgrade to Montage Box

Videoconferencing
View your remote interlocutor while collaborating!

Multi-platform regardless of your device, you can
stream to your big screen

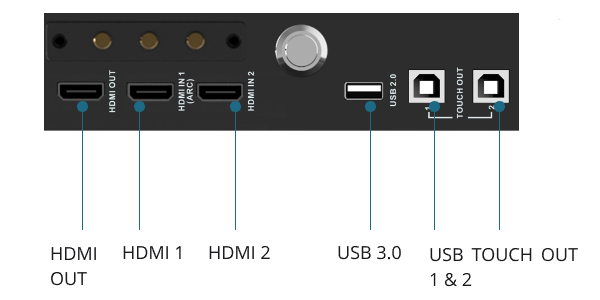

EASYPITCH PRO CONNECTIONS

Our Easypitch interactive flat panels are equipped with a set of connections for maximum ease of use! Screen connectors are placed on the sides and under the frame for quick & intuitive connection*. The Android module and the PC ops allow you to multiply the number of inputs to adapt the interactive flat panel to all your environments !

*Note: the connections vary according to the series: see opposite

#PC74 SCREEN

#PC53 SCREEN

*Note: the connections vary according to the series: see opposite

RK ANDROID

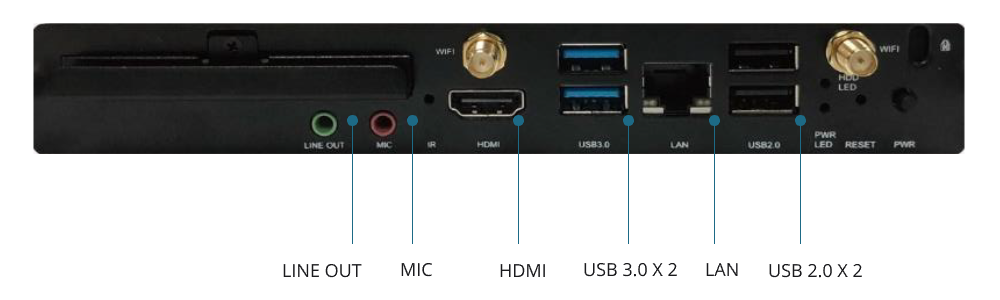

PC OPS

DUAL WINDOWS & ANDROID INTERFACE

Easypitch allows you to work on the operating system of your choice. Windows 10 Pro environment on the ops (pc Rack) and an Android 8.0 environment (integrated into the screen). The two environments work alongside each other. The Easypitch Pro screen allows you to navigate from one to the other at any time.

With Easypitch, your workspace is modular !

RK ANDROID

Version: Android 7.2 Oreo
CPU: ARM Cortex A73X2
Carte mère : HS V811
GPU: G51MP4
RAM: 3 GB
ROM: 16 GB

WINDOWS OPS

Version: Windows 10 Pro
CPU: Processeur Intel® Core™ 7e Gen CPU @ 2.7GHz 2.9 GHz Intel Skylake-U i7-7500U
Système d’exploitation: 64 bits
Mémoire : Disque dur interne SSD M2.2242 de 128 GB
RAM: 8GB
Réseau: 802.11 a/b/g/n/ac, Bluetooth V4.0

EASYPITCH PRO SCREENS SPECIFICATIONS

#PH74

PRODUCT SHEET

#PC53

PRODUCT SHEET

MAIN SPECIFICATIONS

Modèles :

Size

Integrated wireless presentation system

Built-in WIFI router

Infrared

Contact Points

Screen type

Resolution

Android

Brightness (cd/m2)

Audio

Antiglare

Glass

Response time

HID

Input/Output

Consumption (Watt)

Lifetime in hours

Warranty (On-site de/re-installation)

Annotation software included

Wall mount included

#PH74

55", 65", 75" & 86" UHD 4K

Yes

Infrared

x 32

LED

3840 x 2160 4K

8.0

350

2*15W + bass 1*15W

Yes

4 mm

8 ms

Yes

VGA OUT, VGA1/Audio, VGA2/Audio, 2x USB3 Android, HDMI1, HDMI2, DP IN, USB2.0 Android, USB TOUCH OUT, Antenne Wifi, RS-232, WANN IN, LAN OUT AV IN, SPDIF, Casque, TOUCH OUT2, Audio PC IN3, VGA3 PC IN3, RJ45

55": 130 w
65": 160 w
75": 320 w
86": 390 w

55 000

3 years

Yes

#PC53

65", 75" & 86" UHD 4K

Yes

Infrared

x 32

LED

3840 x 2160

7.1

350

3*15W

Yes

4 mm

6 ms

Yes

4 x HDMI IN 2.1, 1 x HDMI OUT, VGA IN +Audio, DisplayPort 1.2 IN, Audio Output, Headphone, 5 x USB, RS-232, LAN, Wi-Fi module, 2 x USB TOUCH, Bluetooth 4.0

65": 178 w
75": 270 w
86": 338 w

55 000

3 years

Yes

98" #PC88

98" UHD 4K

Yes

Infrared

x 32

LED

3840 x 2160

5.1

500

3*15W

Yes

5 mm

5 ms

Yes

VGA OUT, VGA1/Audio, 2x USB3 Android, HDMI 1, HDMI 2, DP IN, USB2.0 Android, USB TOUCH OUT, Antenne Wifi, RS-232, WANN IN, LAN OUT AV IN, SPDIF, Casque, TOUCH OUT2, Audio PC inn 3, VGA3 PC inn 3, RJ45

98" : 750 w

55 000

3 years

Yes

DIMENSIONS & WEIGHTS

Modèles :

Dimensions (W x H x D) in mm

Weight (kg)

VESA (D x H) in mm

#PH74

55": 1285,4x766,2x90
65": 1490,5x875,5x89,3
75": 1714,74x1002,76x89,3
86": 1959,5x1170,2x89,3

55": 34
65": 44
75": 56
86": 70

55" : 400x400
65" : 600x800
86" : 600x800

#PC53

65": 1527 x 903 x 110
75": 1748.5 x 1027.5 x 110
86": 1993 x 1163.5 x 109.5

65": 54
75": 67
86": 100

75" : 600x400
86" : 800x600

98" #PC88

98": 2233 x 1304 x 116

98": 126

98" : 800x600

Modèles :

CPU

GPU

Active dynamic stylus pen

#PH74

ARM Cortex A73x2

G51MP4

Yes

#PC53

RK3399

98" #PC88

Mstar MSDA128 Quadcore CortexA53

MALI 450 MP4

BUSINESS TESTIMONIALS

DECATHLON, INDUSTRY 4.0 WITH EASYPITCH

Decathlon decided to equip itself with an interactive flat panel to boost its daily KPI meetings and promote remote collaboration. The goal with the touch screen is to switch to paperless workshop 4.0 and improve productivity.

“We started with the idea of Factory 4.0, i.e. the paperless workshop [...] to do weekly reporting with the team [...] and to exchange with our partners all over the world. We have what we call the top 5 where we will debrief with the production team the previous day’s production indicators and the Decathlon indicators in front of the screen”.

According to
REYNALD SAINT MAXENT
Technical Director
Watrellos Site

More testimonials
